Pillow Water Tank

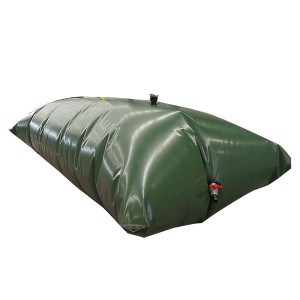

A-1 Pillow Water Tank
The tanks are made by reinforced fabric with PVC/ TPU coated and showing a pillow shape when the tank is full.
It can be used to store industrial water, fire water, rainwater harvesting, irrigation water, concrete mixing water, slope green water, sewage water storage and oil well cementing.
Its advantages are: can be folded when empty, the weight light and easy to transport, on-site installation is simple, long life and low maintenance costs.
Dimension as following:
| Capacity | Dimensions(empty)
LxW in m |
Height
in m |
Weight
in kg |
Fold size
in m3 |
| 1000L | 2.8 x 1.5 | 0.3 | 11 | 0.04 |
| 2000L | 2.8 x 2.3 | 0.50 | 16 | 0.06 |
| 3000L | 3.2 x 2.8 | 0.55 | 21 | 0.09 |
| 5000L | 4.5 x 2.6 | 0.60 | 32 | 0.1 |
| 8000L | 4.3 x 3.4 | 0.80 | 37 | 0.2 |
| 10,000L | 5.0 x 3.8 | 0.90 | 46 | 0.3 |
| 15,000L | 5.5 x 4.2 | 0.90 | 59 | 0.35 |
| 20,000L | 5.7 x 4.6 | 1.00 | 65 | 0.4 |
| 30,000L | 6.8 x 5.7 | 1.10 | 96 | 0.6 |
| 50,000L | 8.2 x 7.2 | 1.10 | 145 | 0.7 |
| 80,000L | 11.7 x 7.2 | 1.20 | 206 | 0.9 |
| 100,000L | 11.0 x 9.5 | 1.40 | 253 | 1.3 |
| 200,000L | 16.6 x 9.5 | 1.50 | 600 | 2.0 |
| 500,000L | 21.0 x 16.0 | 1.60 | 900 | 5.0 |
| 800,000L | 25.0 x 17.0 | 2.5 | 1000 | 8.0 |
| 1,000,000L | 26.0 x 18.0 | 2.5 | 1200 | 9.0 |
