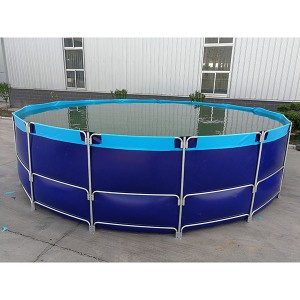

ROUND FISH TANK
Product Description
Product Other Name | PVC Canvas Fish Tank FarmingRound Fish Pond PVC Tarpaulin |
Color | Sky Blue/ Gray / Yellow / Green / Custom |
GSM | 900gsm /1000gsm/ 1200gsm / 1500gsm / 2000gsm |
Thickness | 0.8mm / 0.9mm / 1.0mm / 1.2mm/ 1.5mm |
Span Life | About 7 to 10 years |
Application | Aquaculture Fish farming/Shrimp farming |
Features | 5,000L--- 1,000,000LAccept customization |
Features | 1) High tenacity polyester yarns with PVC coating;2) Laminated technology & Hot-melt Coating technology;
3) Good strength, good flexibility and adhesion strength; 4) Outstanding tearing strength for welding; 5) Cold Crack Resistance, Anti-Mildew, Anti-Static treatment, Waterproof, Sunproof; 6) Best color fastness. |
Round Frame Pond Size sheet
Diameter*H( m) | Capacity in m³ | Stand pipe in piece | Horizontal pipe in piece | PVC thickness mm |
2.1*1.3 | 4.5 | 5 | 15 | 1.0 |
2.5*1.3 | 6.4 | 6 | 18 | 1.0 |
3*1.3 | 9 | 7 | 21 | 1.0 |
3.4*1.3 | 12 | 8 | 24 | 1.0 |
3.8*1.3 | 15 | 9 | 27 | 1.0 |
4.3*1.3 | 19 | 10 | 30 | 1.0 |
5.1*1.3 | 27 | 12 | 36 | 1.0 |
5.5*1.3 | 31 | 13 | 39 | 1.0 |
6*1.3 | 37 | 14 | 42 | 1.0 |
8*1.3 | 65 | 19 | 57 | 1.2 |
10*1.3 | 102 | 23 | 69 | 1.2 |
16*1.3 | 261 | 36 | 144 | 1.2 |
20*1.3 | 408 | 47 | 188 | 1.2 |
30*1.3 | 920 | 71 | 284 | 1.2 |
2.1*1.5 | 5 | 5 | 15 | 1.0 |
2.5*1.5 | 7.4 | 6 | 18 | 1.0 |
3*1.5 | 10 | 7 | 21 | 1.0 |
3.4*1.5 | 14 | 8 | 24 | 1.0 |
3.8*1.5 | 17 | 9 | 27 | 1.0 |
4.3*1.5 | 22 | 10 | 30 | 1.0 |
5.1*1.5 | 31 | 12 | 36 | 1.0 |
5.5*1.5 | 36 | 13 | 39 | 1.0 |
6*1.5 | 42 | 14 | 42 | 1.0 |
8*1.5 | 75 | 19 | 57 | 1.2 |
10*1.5 | 118 | 23 | 69 | 1.2 |
16*1.5 | 301 | 36 | 144 | 1.2 |
20*1.5 | 470 | 47 | 188 | 1.2 |
30*1.5 | 1000 | 71 | 284 | 1.2 |
Pool material: Environmental protection food grade PVC

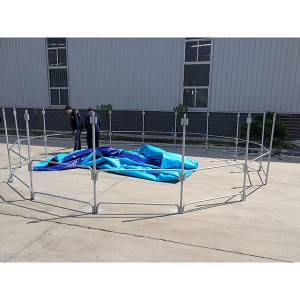

Steel Frame material: stand pipe diameter is 32 mm, wall thickness of 2.5 mm, horizontal pipe diameter is 25 mm, wall thickness of 2.0 mm, for galvanized surface treatment;
Caliber: 25/32/50/75/110/160mm optional, the outlet can match the same specification of PVC drain pipe.
